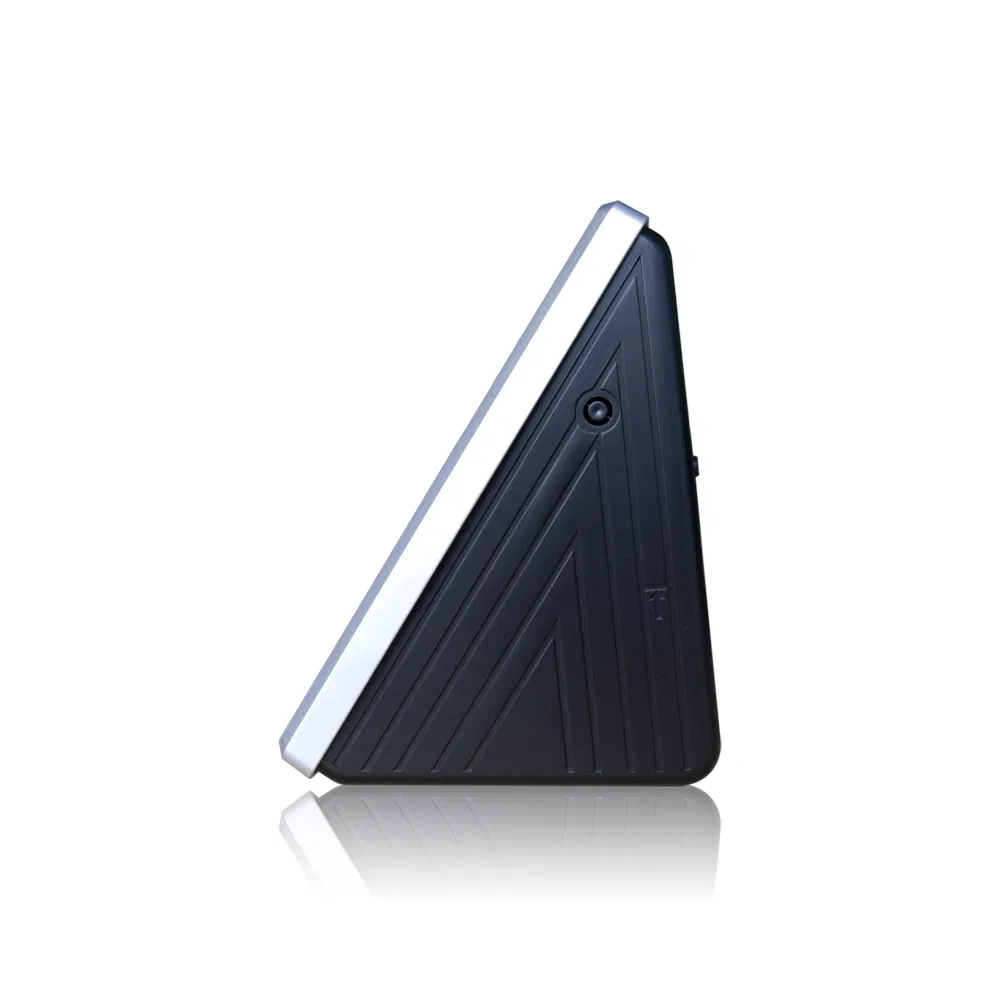

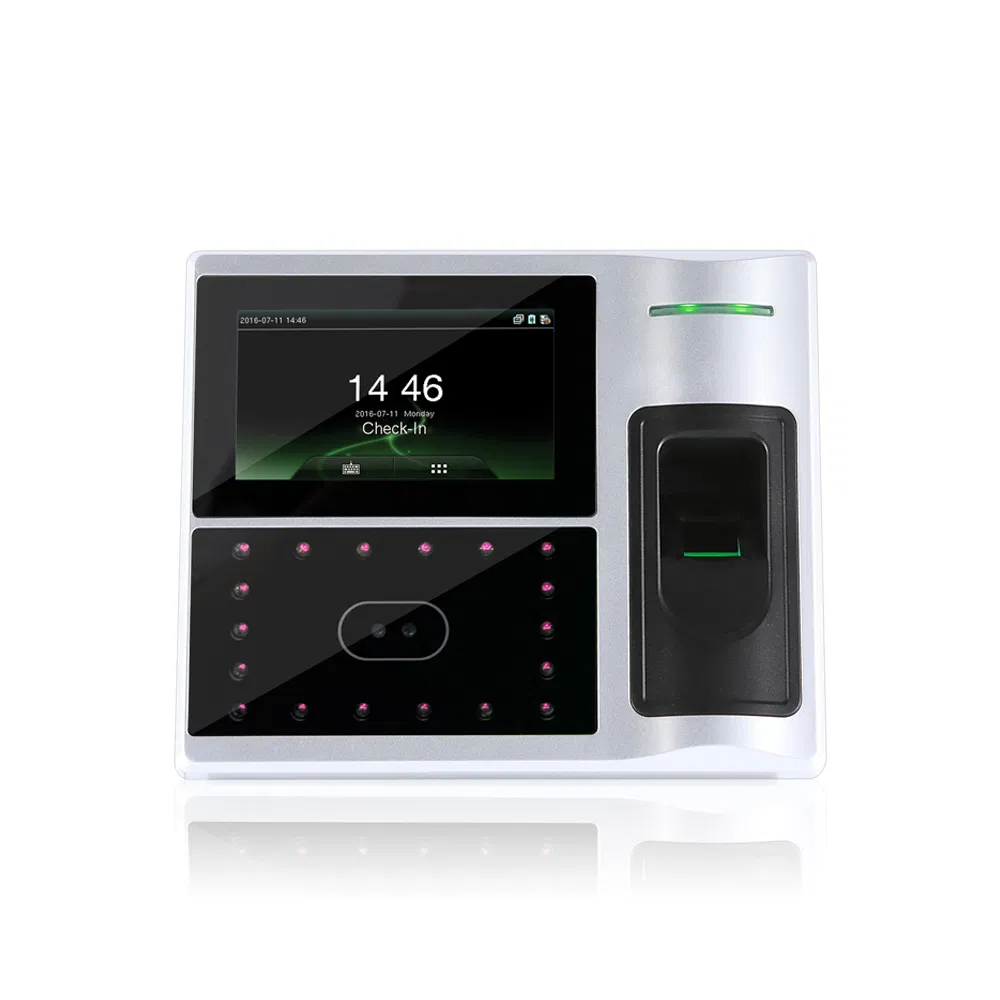

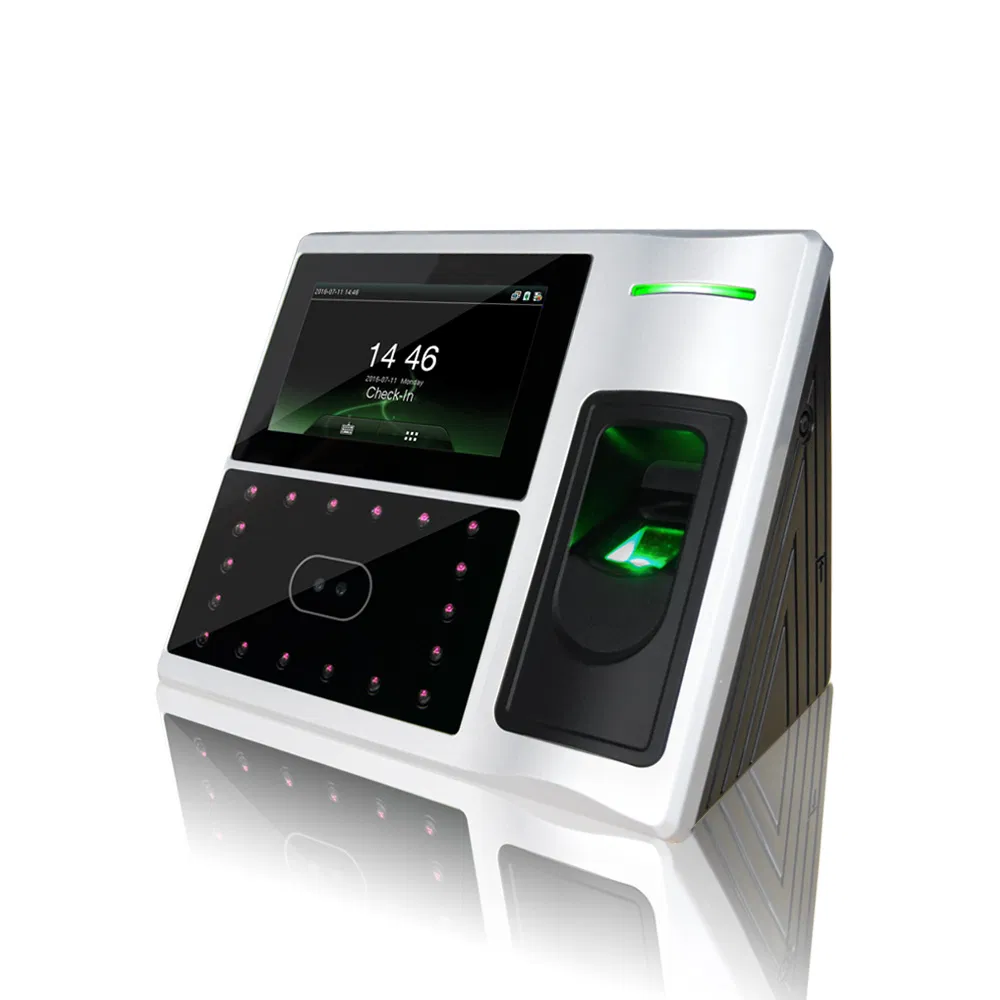

with Clock Biometric Machine Face Recognition Time and Attendance System
Product Description
Basic Information
Model NO.FA1-H
ClockWith Clock
Voice ServiceWith Voice Service
Facial Capacity3000
LCD Display4.3 Inch TFT Touch Screen
Internal CameraYes
CapacityFace: 3,000; Fingerprint: 4,000
CommunicationTCP/IP, RS232/485, USB, WiFi, 3G
HS Code854370999
CertificationCE, FCC, ISO9001, RoHS
Product Overview

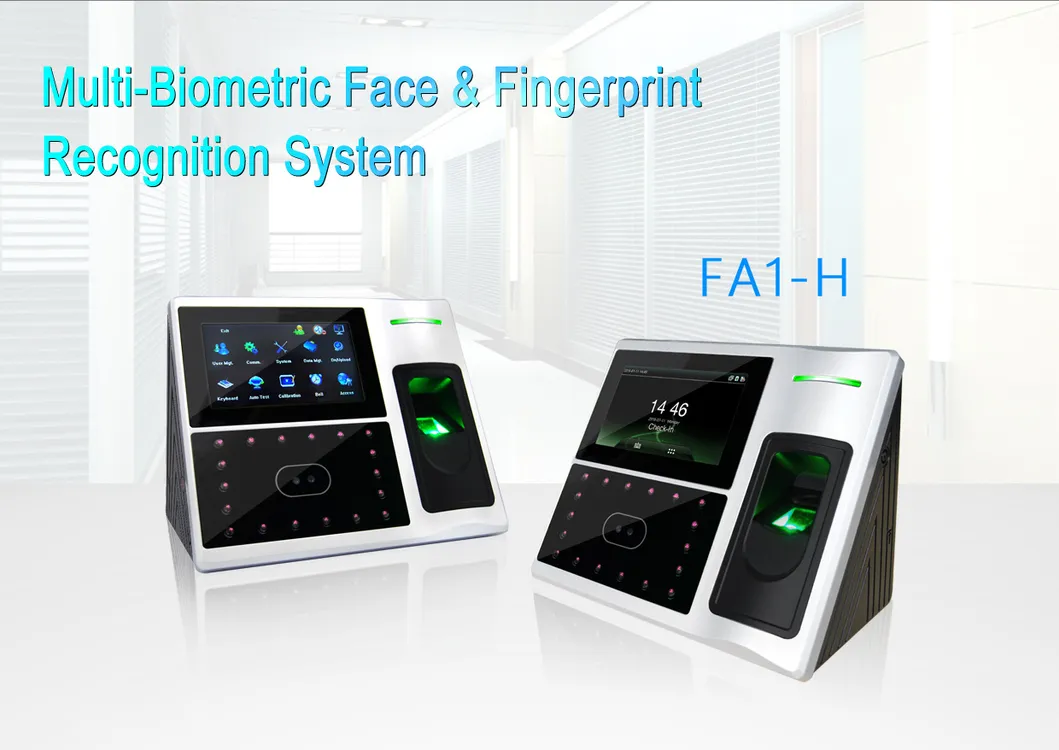

Model Name: FA1-H
Face Recognition and Fingerprint Time Attendance & Access Control System.
✓
Built-in Li battery support extra 4 hours operation.✓
4.3 Inch TFT Touch Screen with elegant design.✓
Wireless Wifi or 3G function connectivity.✓
Infrared optical system for dark environments.✓
Composite algorithm system with high speed operating.✓
Embedded LINUX system, easy to integrate.
Technical Specifications
| Category | Details |
|---|---|
| Display & Speaker | 4.3" TFT Touch screen; Voice Prompt (Multi-language) |
| Capacity | Face: 3,000; Fingerprint: 4,000; Logs: 100,000 |
| Verification Speed | 1:1 ≤0.5s; 1:N ≤1s |
| Environment | Temp: 0ºC ~ 45ºC; Humidity: 20% ~ 80% |
| Power Supply | 110/220VAC ~ 12VDC 3A |
| Communication | TCP/IP, RS232/485, USB Host*2, Wiegand out |
| Standard Functions | Webserver, ADMS, Photo ID, DLST, Scheduled-bell, Workcode |
| Optional | ID/Mifare card reader, WiFi, 3G, External bell |

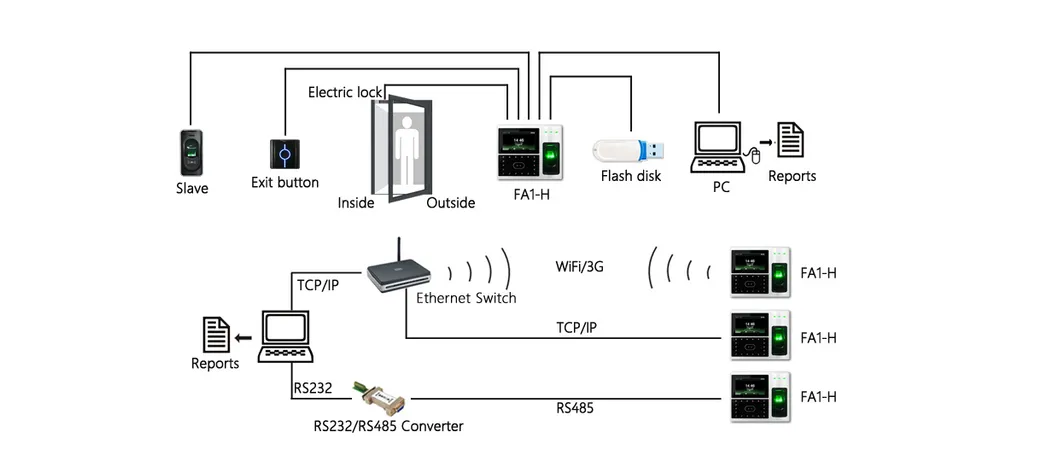

Connection Diagram

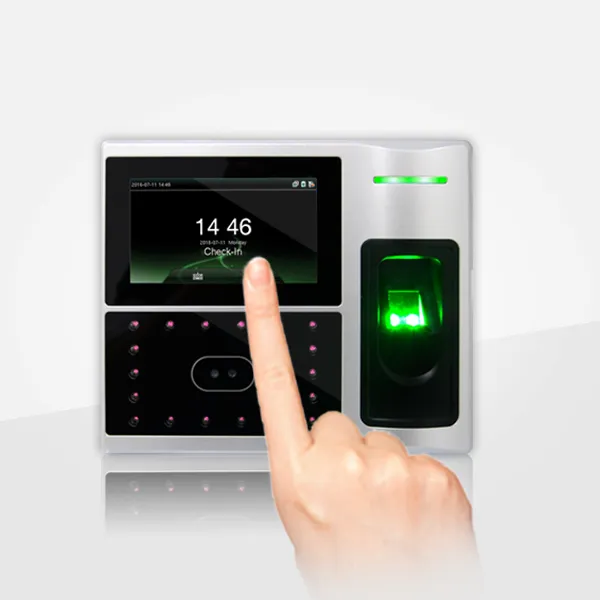

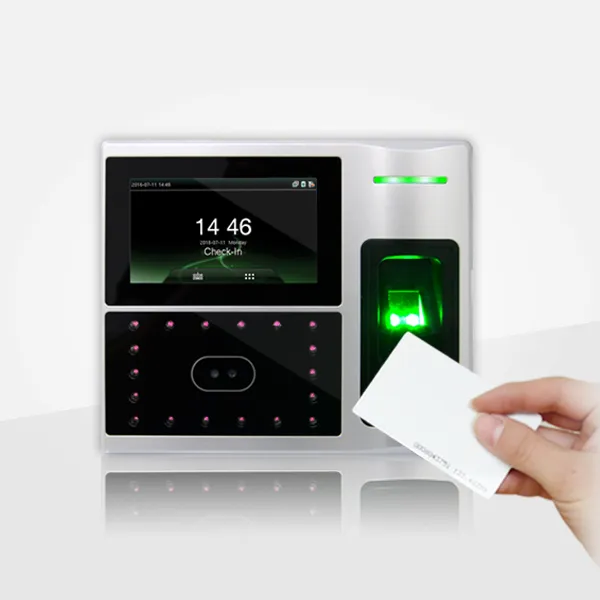

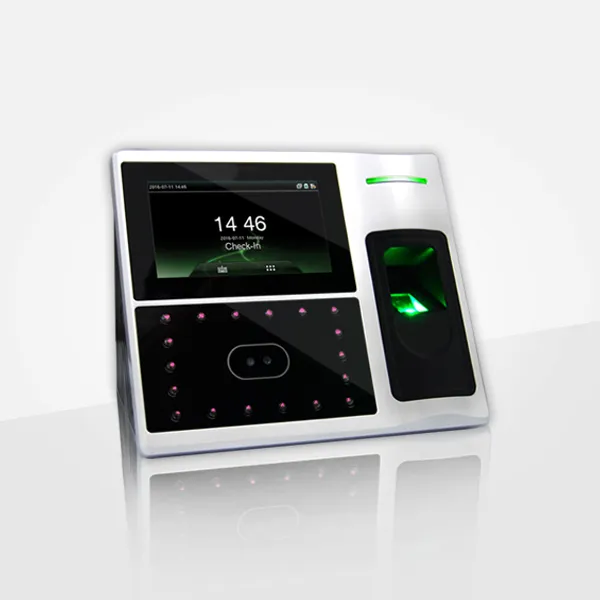

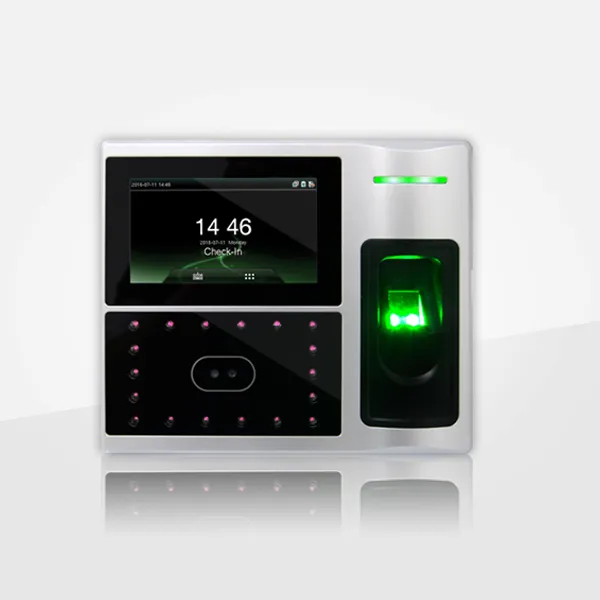

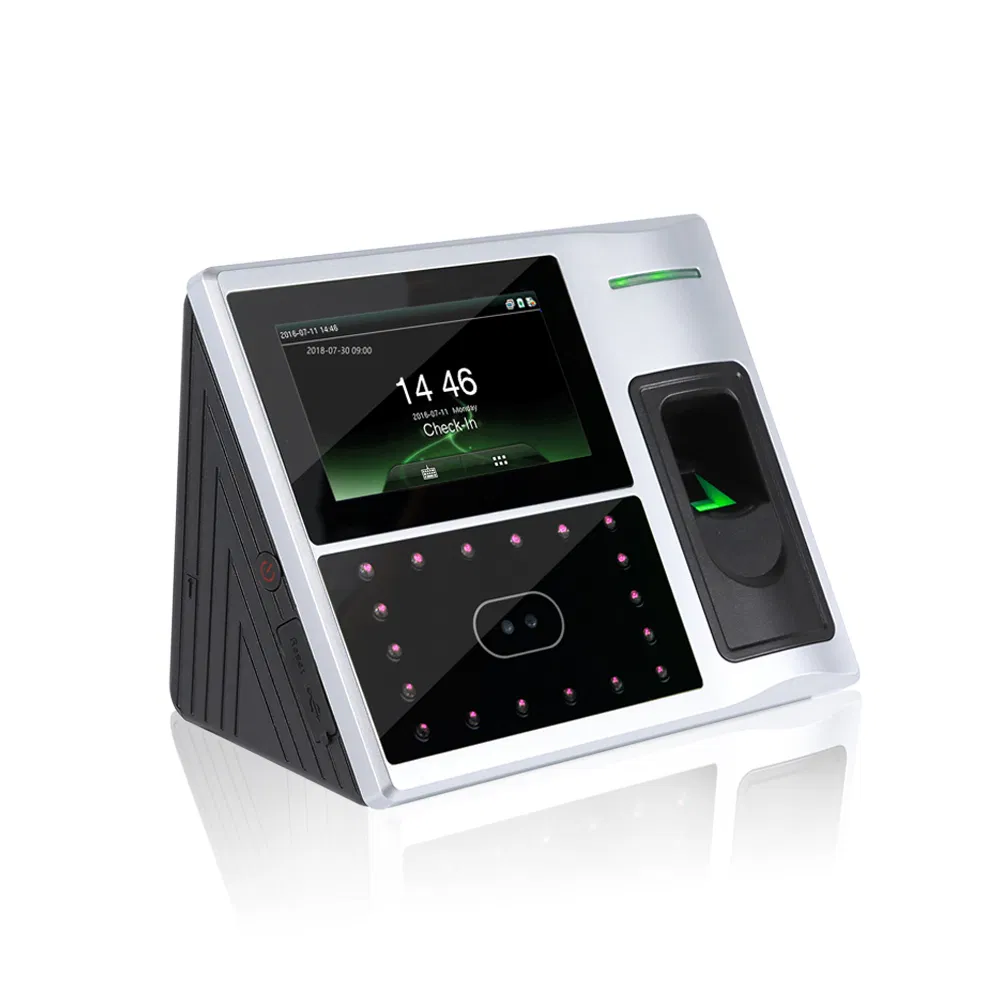

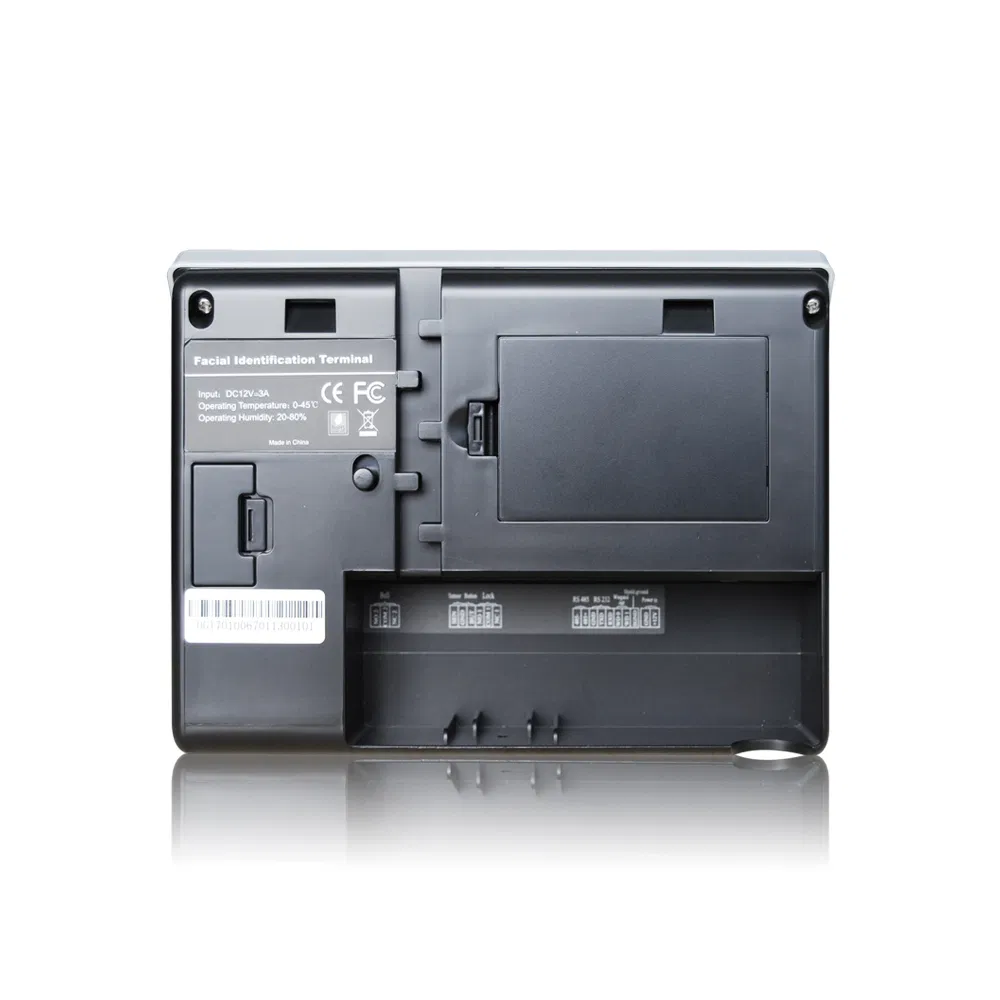

Product Gallery
Frequently Asked Questions
Q1: What is the maximum facial and fingerprint capacity of the FA1-H?
The device can store up to 3,000 face templates and 4,000 fingerprint templates, making it suitable for medium to large organizations.
Q2: How does the system perform in low-light or dark environments?
The FA1-H features a high-definition infrared optical system that enables accurate user identification even in dark environments.
Q3: Does the device work during power outages?
Yes, it comes with a built-in backup battery that supports up to 4 hours of continuous operation in the event of a power failure.
Q4: What wireless communication options are available?
The FA1-H supports optional wireless WiFi or 3G functions, in addition to standard TCP/IP and RS232/485 wired connections.
Q5: What are the main access control features?
It includes a built-in relay, door sensor support, dismantlement alarm, break-in alarm, and duress alarm for enhanced security.
Q6: Can the device support multiple languages?
Yes, it supports multi-language interfaces including English, Spanish, French, Arabic, and more than 40 other selectable languages.
